● High-performance AI processing chips with multi-core parallel processing capabilities to realize complex image processing;
● Built-in rich algorithm tools for object positioning, feature recognition, defect inspection, edge learning-based classification, and more;
● Compact design with rotatable rear connectors, suitable for narrow spaces;
● Integrated design with built-in auto focus lens and multiple type multiple channel light sources, with super environmental adaptability;
● Powerful image processing algorithms with simple and efficient one-click configuration;
● Cross-platform Web access and guided configuration process, flexible for tuning and deployment;
● Abundant IO interfaces such as Ethernet, RS232, and GPIO, support multiple communication protocols.
ไม่มีสินค้าในสต็อก
สอบถามเพิ่มเติม
N/A
Amason
มั่นใจสินค้าทุกชิ้นมีประกัน 1 ปี
จัดส่งฟรี
ผ่านทาง DHL
Basic
-
Resolution1280 × 1024
-
Max. Frame rate60 fps
-
Shutter ModeGlobal
-
Mono/ColorMono
-
Lens MountM12, auto focus
-
Trigger ModeSoftware/external/free run etc.
-
SoftwareEasyVS
-
CertificationsCE、KC
-
FunctionAI Tool: Classification Positioning: pattern match, line match, circle match; Inspection：profile contrast, pixel counting, brightness , contrast; Identification：1 dimensional and 2 dimensional codes； Logic Tool: mathematical logic operation
-
Focal Length7 mm
-
Focus ControlAuto focus
-
Light Source TypeWhite (Red & Blue options) , 1-channel diffused and 2- channel transparent light
Performance
-
Working Distance50-500mm
-
Field of View116×92 mm @150mm
Port
-
Connector2 industrial M12 connectors, Ethernet and GPIO
-
Network Port100M Ethernet
-
GPIO InterfaceRS232, 2 Opto-isolated inputs, 3 Opto-isolated outputs
-
Communication ModeRS232, Ethernet
-
Communication protocolTCP Client,TCP Server,UDP,FTP,RS232,Profinet,EtherNet/IP
-

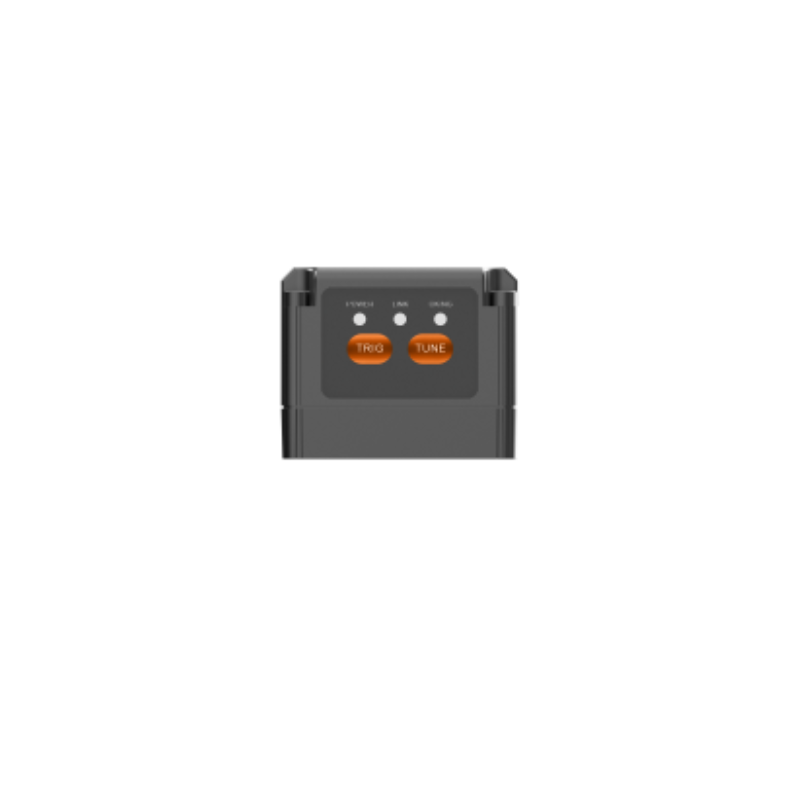

LED IndicatorPower, Ethernet, Result
Power
-
Power SupplySupport 9~26VDC, 1.5A input
-
Power Consumption<14W
Structure
-
Product Dimensions47mm×58mm×38mm (excluding connectors)
-
Net Weight<180 g
-
ProtectionIP65
-
Casing MaterialAluminum alloy (excluding front cover)
Environment
-
Operating Temperature-20℃～+50℃
-
Operating Humidity20%～95%, non-condensing
-
Storage Temperature-30℃～+70℃
