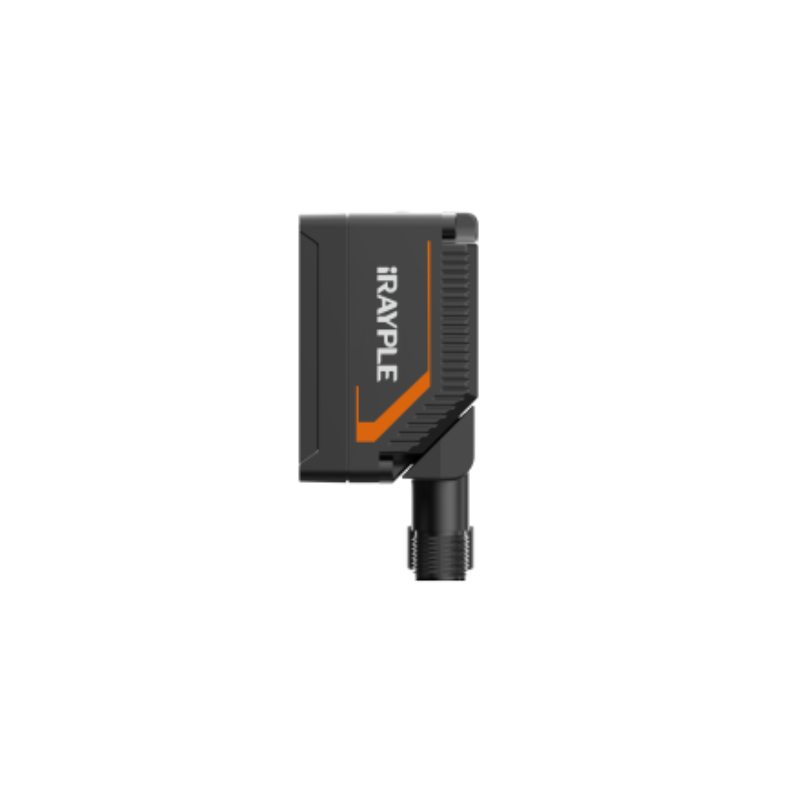

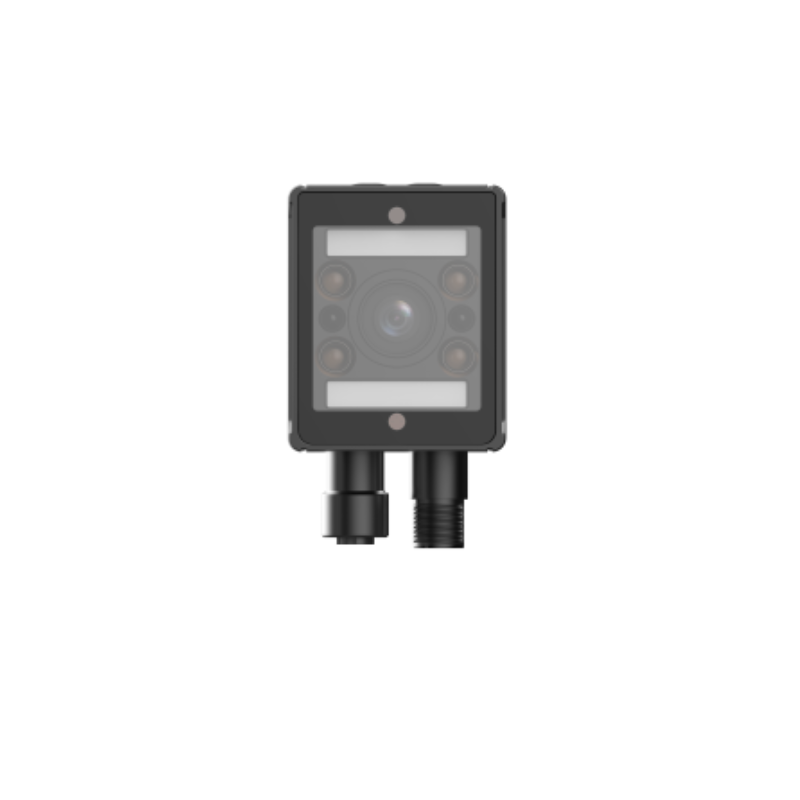

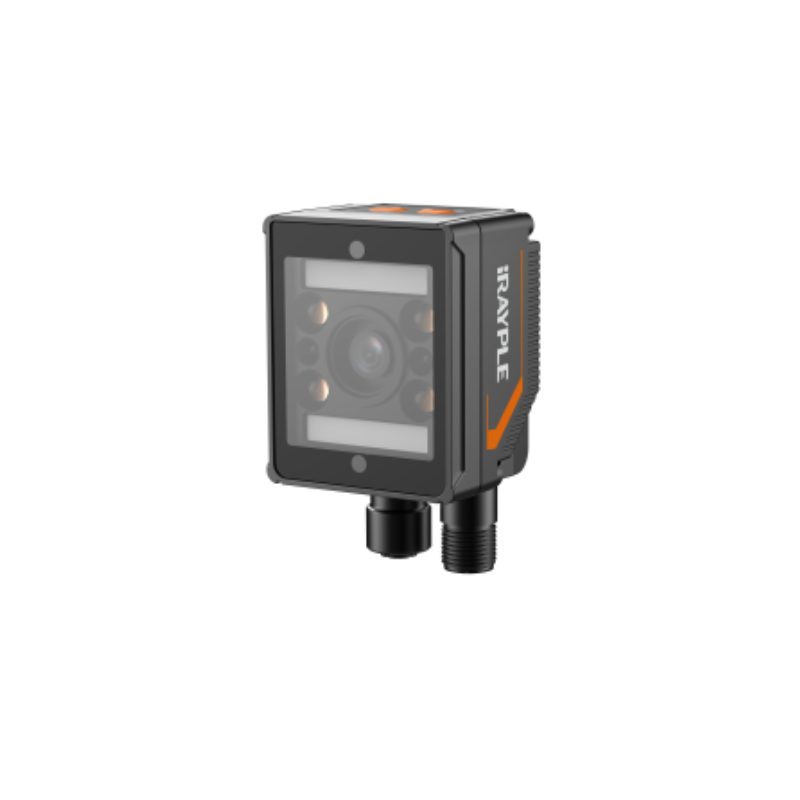

    SS4013MG-12M-WGN01E

    ● High-performance AI processing chips with multi-core parallel processing capabilities to realize complex image processing; ● Built-in rich algorithm tools for object positioning, feature recognition, defect inspection, edge learning-based classification, and more; ● Compact design with rotatable rear connectors, suitable for narrow spaces; ● Integrated design with built-in auto focus lens and multiple type multiple channel light sources, with super environmental adaptability; ● Powerful image processing algorithms with simple and efficient one-click configuration; ● Cross-platform Web access and guided configuration process, flexible for tuning and deployment; ● Abundant IO interfaces such as Ethernet, RS232, and GPIO, support multiple communication protocols.
    iRAYPLE
    Smart Camera
    Machine Vision
    ไม่มีสินค้าในสต็อก สอบถามเพิ่มเติม
    N/A
    เพิ่มลงในตระกร้า

    Amason

    มั่นใจสินค้าทุกชิ้นมีประกัน 1 ปี

    จัดส่งฟรี

    ผ่านทาง DHL

    Basic

    • Resolution
      1280 × 1024
    • Max. Frame rate
      60 fps
    • Shutter Mode
      Global
    • Mono/Color
      Mono
    • Lens Mount
      M12, auto focus
    • Trigger Mode
      Software/external/free run etc.
    • Software
      EasyVS
    • Certifications
      CE、KC
    • Function
      AI Tool: Classification Positioning: pattern match, line match, circle match; Inspection：profile contrast, pixel counting, brightness , contrast; Identification：1 dimensional and 2 dimensional codes； Logic Tool: mathematical logic operation
    • Focal Length
      12 mm
    • Focus Control
      Auto focus
    • Light Source Type
      White (Red & Blue options) , 1-channel diffused and 2- channel transparent light

    Performance

    • Working Distance
      50-500mm
    • Field of View
      64×51 mm @150mm

    Port

    • Connector
      2 industrial M12 connectors, Ethernet and GPIO
    • Network Port
      100M Ethernet
    • GPIO Interface
      RS232, 2 Opto-isolated inputs, 3 Opto-isolated outputs
    • Communication Mode
      RS232, Ethernet
    • Communication protocol
      TCP Client,TCP Server,UDP,FTP,RS232,Profinet,EtherNet/IP

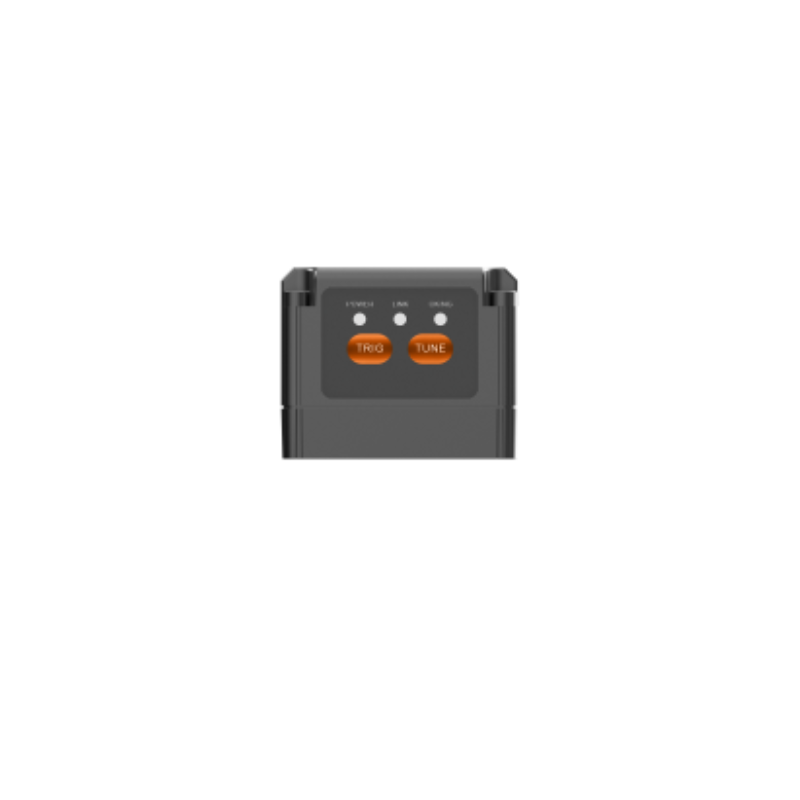

    • LED Indicator
      Power, Ethernet, Result

    Power

    • Power Supply
      Support 9~26VDC, 1.5A input
    • Power Consumption
      <14W

    Structure

    • Product Dimensions
      47mm×58mm×38mm (excluding connectors)
    • Net Weight
      <180 g
    • Protection
      IP65
    • Casing Material
      Aluminum alloy (excluding front cover)

    Environment

    • Operating Temperature
      -20℃～+50℃
    • Operating Humidity
      20%～95%, non-condensing
    • Storage Temperature
      -30℃～+70℃
