Basic

• Resolution
  1280 × 1024

• Max. Frame rate
  60 fps

• Shutter Mode
  Global

• Lens Mount
  M12, auto focus

• Trigger Mode
  Software trigger/External trigger/Free run modes

• Software
  EasyID

• Certifications
  CE，KC

• Function
  lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）

Performance

• Focal Length
  12mm

• Working Distance
  50-500mm

• Field of View
  64×51 mm（working distance:150mm）

• Max. Read Speed
  60 codes/s

• Light Source Type
  White （Difused/2 Channel Non-polarized）

Port

• Connector
  2 Industrial connectors support Ethernet and GPIO

• Network Port
  100M Ethernet

• GPIO Interface
  RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs

• Communication Mode
  RS232, Ethernet

• Communication protocol
  SDK,TCP Client,TCP Server,FTP,RS232,Profinet,Modbus,EtherNet/IP,MC(SLMP),FINS/UDP,FINS/TCP

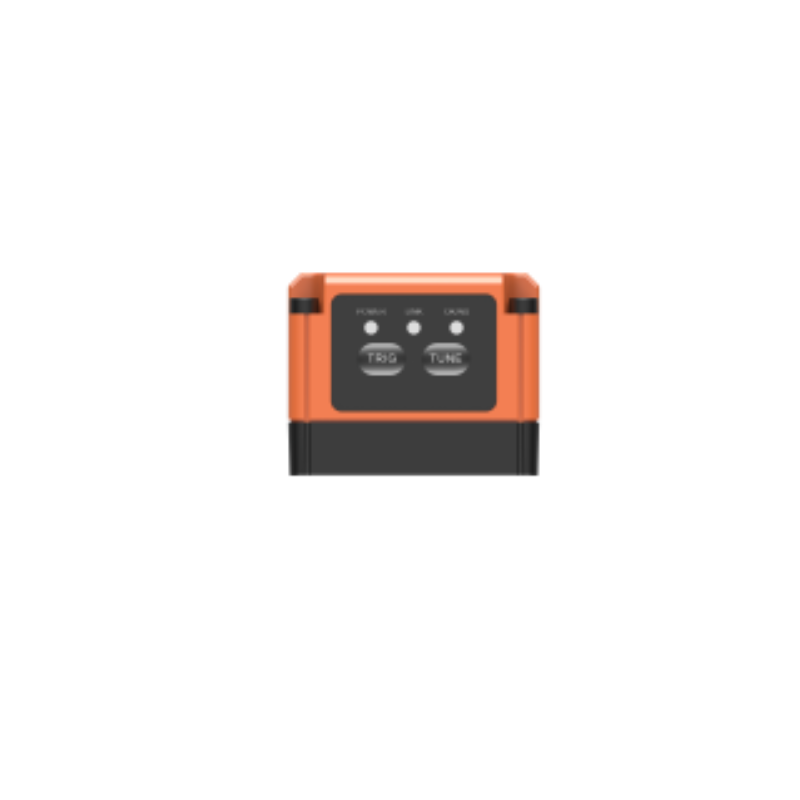

• LED Indicator
  Power,Ethernet,Result

Power

• Power Supply
  9~26V DC, 1.5A input, suitable for industrial environment

• Power Consumption
  <5W

Structure

• Product Dimensions
  47mm×58mm×38mm(not including connector)

• Net Weight
  <180 g

• Protection
  IP65

• Casing Material
  Aluminum alloy + Front cover

Environment

• Operating Temperature
  -20℃～+50℃

• Operating Humidity
  20%～95%(no condensation)

• Storage Temperature
  -30℃～+70℃
