Basic

• Sensor
  2K

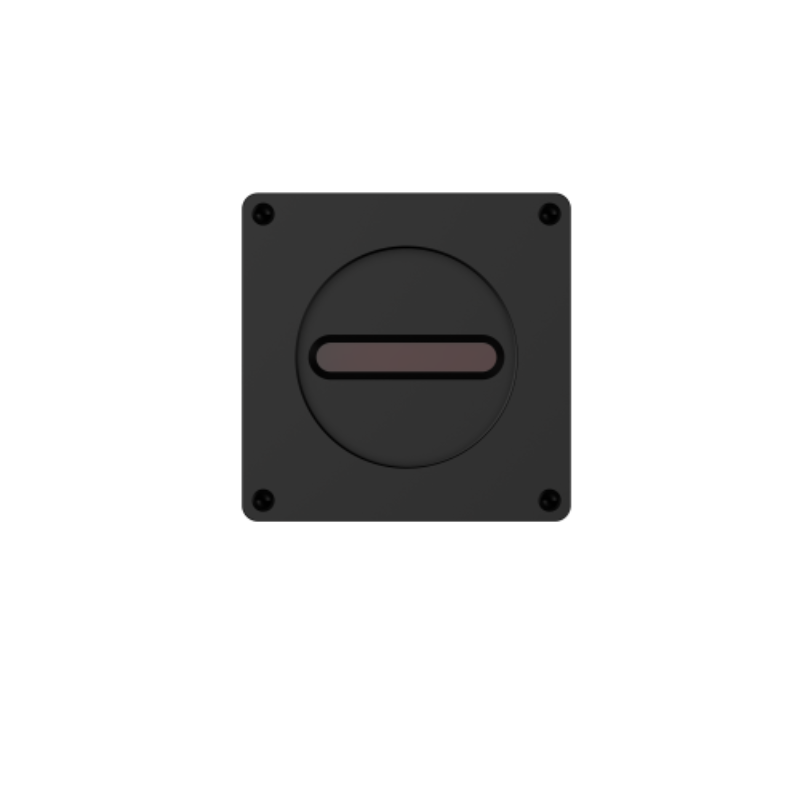

• Image Sensor
  CMOS

• Shutter
  Global

• Resolution
  2048 × 1

• Line Rate
  49 kHz

• Bit Depth
  12

• Mono/Color
  Mono

• Pixel Size
  14 μm × 14 μm


• S/N Ratio
  >39dB

• WDR
  66dB

• Image Format
  Mono8/10/12/10Packed/12Packed

• ROI
  Support

• X Flip
  Support

• Gain
  1~32

• Gamma
  From 0 to 4，support LUT

• Exposure Time
  8μs~100ms

• Trigger Mode
  Software Trigger/Hardware Trigger/Free Run Mode

• FPN
  Support

Performance

• User Setting
  Support two sets of user-defined configurations

• Image Buffer
  64MB image cache，64MB data cache

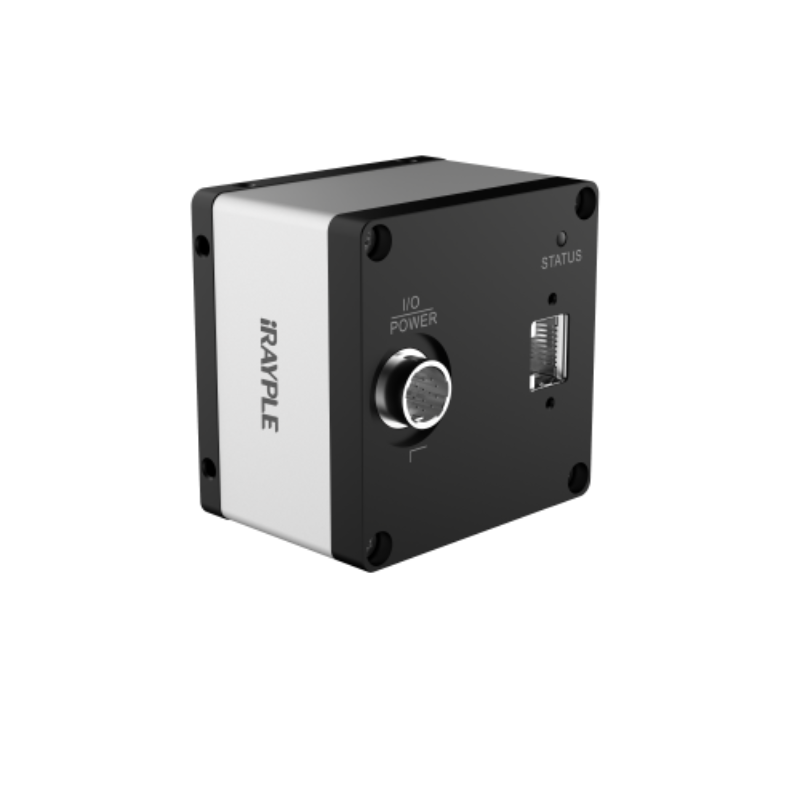

Port

• Port
  GigE

• GPIO Interface
  12-pin Hirose interface for external power supply and external triggering; 2 differential/single-ended inputs, 1 differential configurable input or output, 1 high-speed optocoupler single-ended input, 1 GPIO configurable input or output

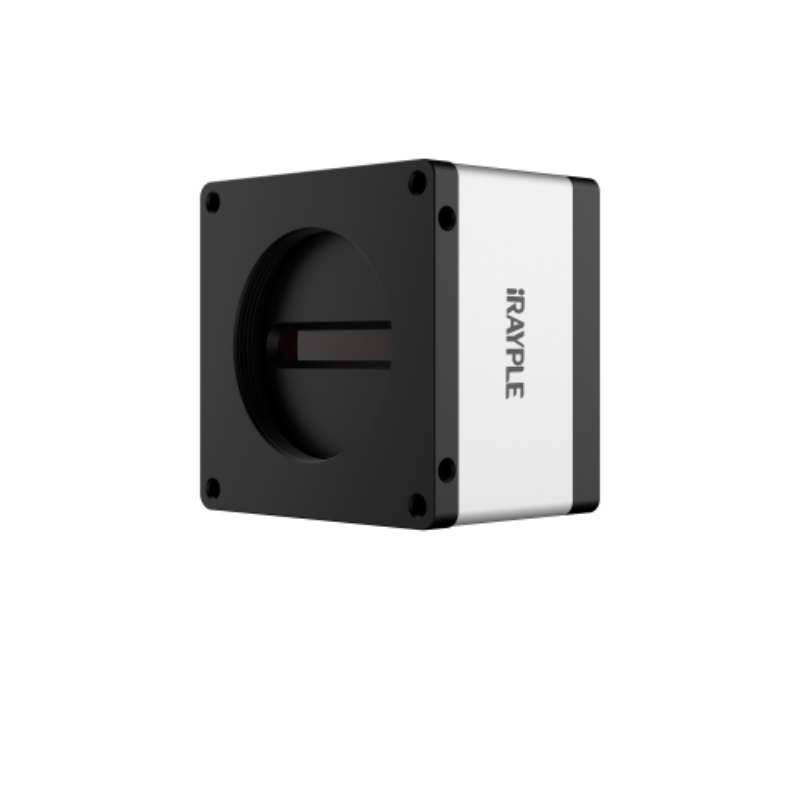

• Lens Mount
  M42 x 1

Power

• Power Supply
  DC 12~24V power supply via 12-pin Hirose connector

• Power Consumption
  ≈4.5W

Structure

• Product Dimensions
  62 mm × 62 mm × 44 mm (Not including rear case connector)

• Net Weight
  245 g

Environment

• Storage Temperature
  - 30℃~+80℃

• Operating Temperature
  - 30℃~+50℃
