● Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;
● 256MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Support multiple image data formats output/ROI/Binning/Mirror, etc.;
● Conform to GigE Vision V2.0 protocol and GenICam standard;
● Conform to CE, RoHS;
ไม่มีสินค้าในสต็อก
สอบถามเพิ่มเติม
N/A
Amason
มั่นใจสินค้าทุกชิ้นมีประกัน 1 ปี
จัดส่งฟรี
ผ่านทาง DHL
Basic
-
Sensor-
-
Image Sensor1/1.7"CMOS
-
ShutterGlobal
-
Resolution2048 × 1200
-
Frame Rate48 fps
-
Bit Depth12
-
Mono/ColorColor
-
Pixel Size4.0 μm × 4.0 μm
-
Pixel2.0 MP
-
S/N Ratio40 dB
-
Dynamic Range66 dB
-
Image FormatMono8,BayerRG8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8
-
BinningSupport
-
ROISupport
-
X FlipSupport
-
Y FlipSupport
-
Gain1～32X
-
GammaFrom 0 to 4, support LUT
-
Exposure Time5 μs～1 s
-
Trigger ModeSoftware Trigger/Hardware Trigger/Free Run Mode
-
SPCSupport
Performance
-
User SettingSupport two sets of user-defined configurations
-
Image Buffer256MB
Port
-
PortGigE, PoE
-

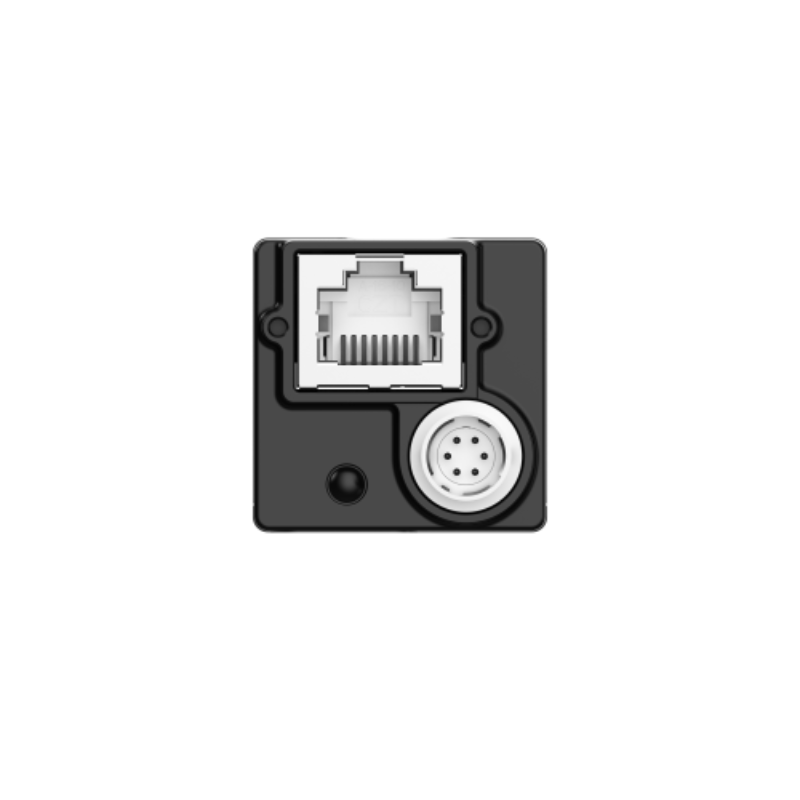

GPIO Interface1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output
-
Lens MountC-mount
Power
-
Power SupplyPoE/ DC 9V~24V power supply via Hirose interface
-
Power Consumption12 V≈2.9 W
Structure
-
Product Dimensions29 mm×29 mm×42 mm (not including lens mount and rear case connector)
-
Net Weight98 g
Environment
-
Storage Temperature-30℃～+80℃
-
Operating Temperature0℃～+50℃
