Basic

• Sensor
  IMX297

• Image Sensor
  1/2.9"CMOS

• Shutter
  Global

• Resolution
  720 × 540

• Frame Rate
  123 fps

• Bit Depth
  10

• Mono/Color
  Mono

• Pixel Size
  6.9 μm × 6.9 μm


• Pixel
  0.4 MP

• S/N Ratio
  39.86 dB

• Dynamic Range
  68 dB

• Image Format
  Mono8/10/10Packed

• Binning
  off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix

• ROI
  Support

• X Flip
  Support

• Y Flip
  Support

• Gain
  1～32X

• Gamma
  From 0 to 3.99998, support LUT

• Exposure Time
  1 μs～10 s；SE:1~13.3us

• Trigger Mode
  Software Trigger/Hardware Trigger/Free Run Mode

• SPC
  Support

Performance

• User Setting
  Support three sets of user-defined configurations

• Image Buffer
  128MB

Port

• Port
  GigE, PoE

• GPIO Interface

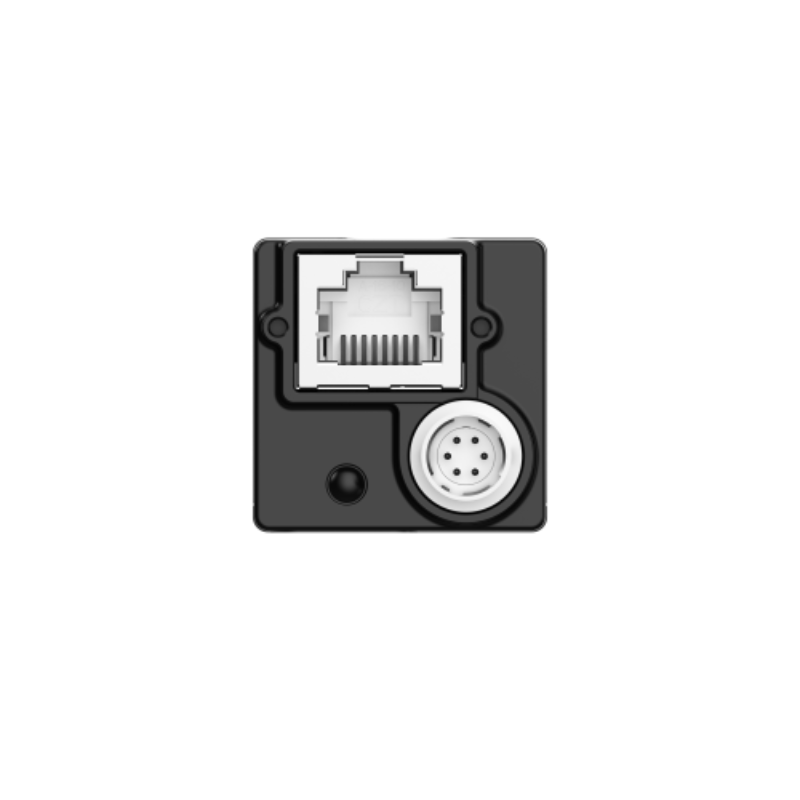

  1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output

• Lens Mount
  C-mount

Power

• Power Supply
  PoE/ DC 9V~24V power supply via Hirose interface

• Power Consumption
  12 V≈2.8W

Structure

• Product Dimensions
  29 mm×29 mm×42 mm (not including lens mount and rear case connector)

• Net Weight
  98 g

Environment

• Storage Temperature
  -30℃～+80℃

• Operating Temperature
  0℃～+50℃
