Parcel’s Identification Information needs to be recorded and tracked through the whole transport process.
How to record them efficiently is a common requirement for logistic company.

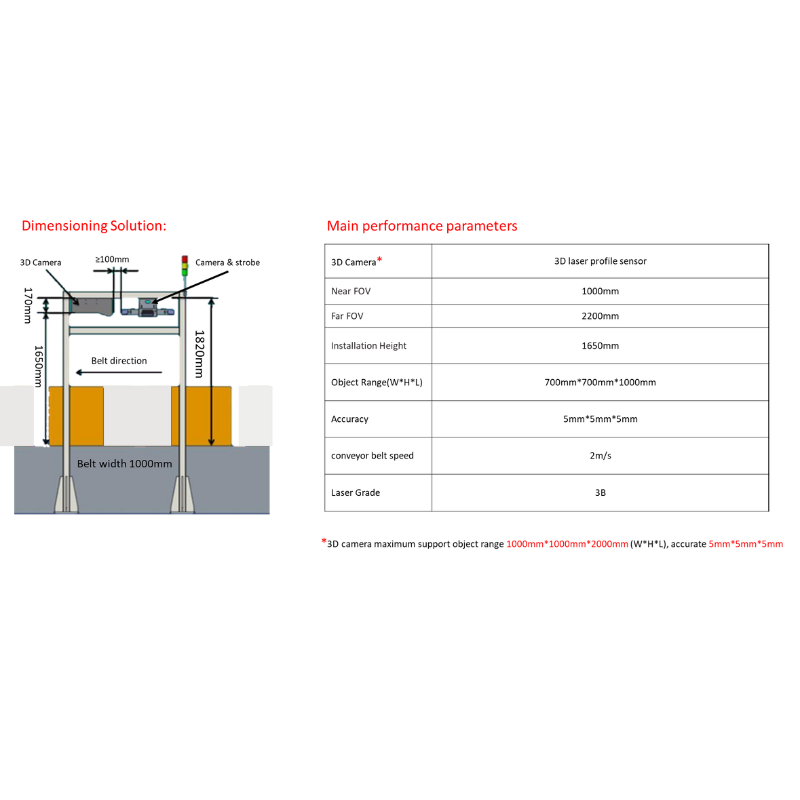

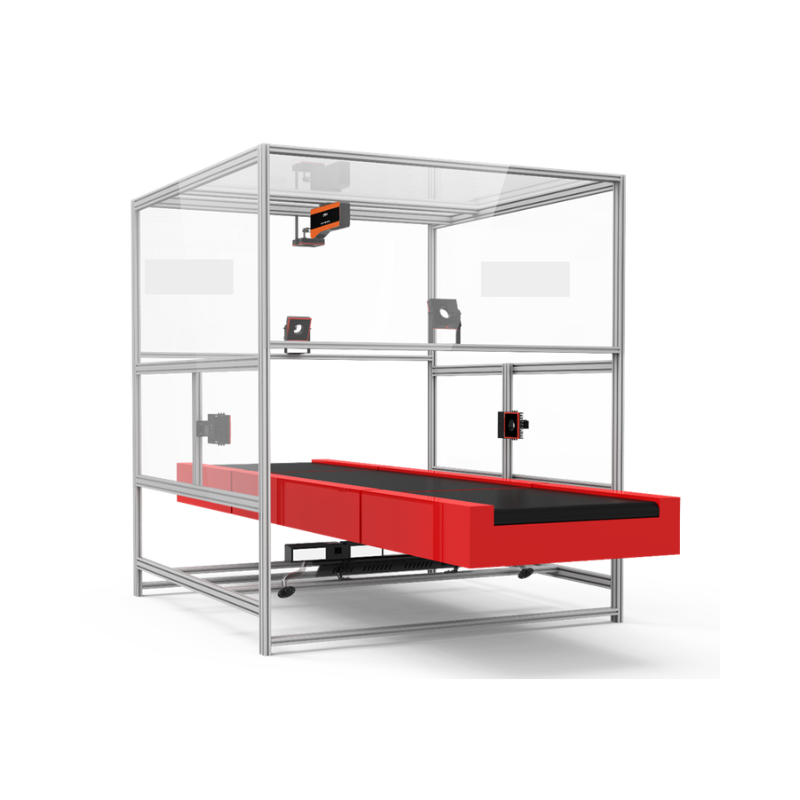

Irayple DWS(Dimensioning Weighing Scanning) system is designed for it.
ไม่มีสินค้าในสต็อก
สอบถามเพิ่มเติม
N/A
Amason
มั่นใจสินค้าทุกชิ้นมีประกัน 1 ปี
จัดส่งฟรี
ผ่านทาง DHL

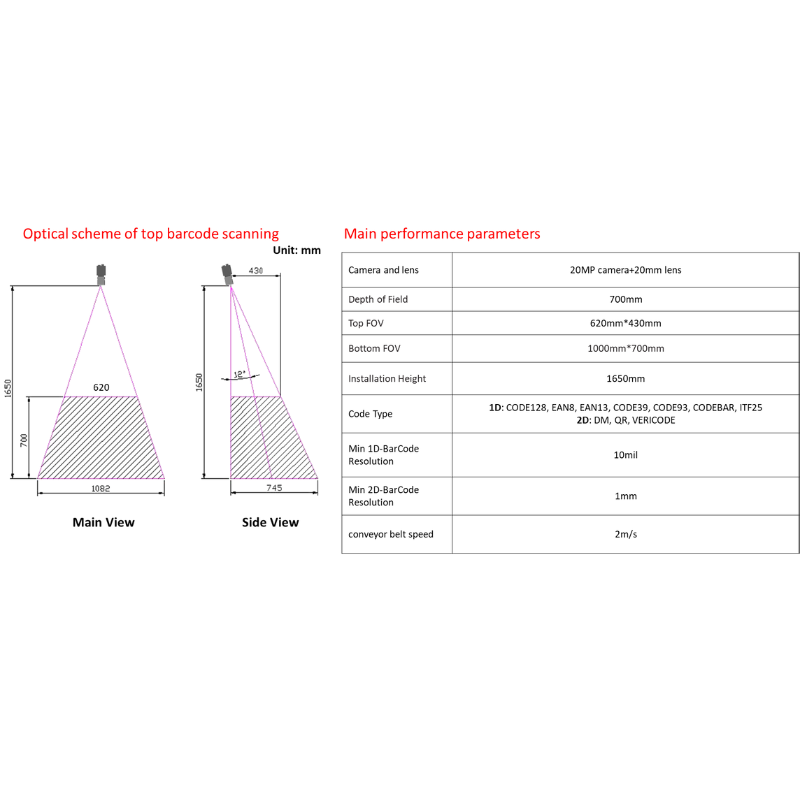

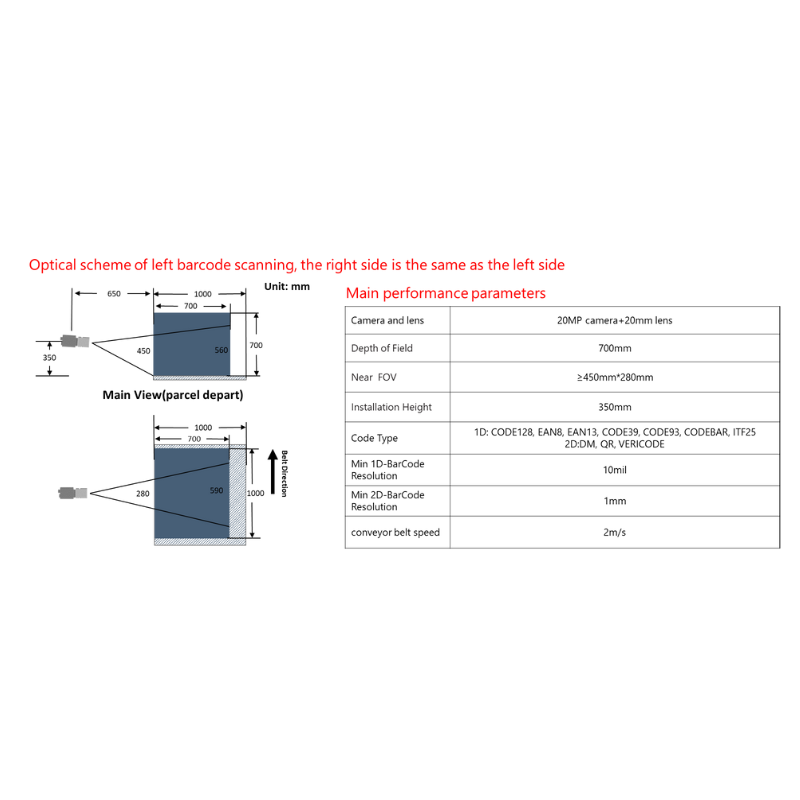

Main performance parameters:
|
Camera and lens |
20 MP camera + 20 mm lens |
|
Conveyor belt width |
1000 mm |
|
Parcel size |
10mm*10mm*10mm -700mm * 700mm * 700mm |
|
Installation Height |
1700mm |
|
Code Type |
1D: CODE128, EAN8, EAN13, CODE39, CODE93, CODEBAR, ITF25 2D:DM, QR, VERICODE |
|
Min 1D-BarCode Resolution |
10mil
|
|
Max 1D-Barcode length |
85mm |
|
Min 2D-QR Code Resolution |
1mm |
|
Max 2D-QR code Size |
50mm*50mm |
|
Conveyor belt speed |
2m/s |
|
Dimensional accuracy |
±5mm |
|
Measurement range |
10mm*10mm*10mm -700mm * 700mm * 700mm |
