Under Vehicle Scanning Systems (UVSS) are cutting-edge security solutions designed to address the evolving threats and challenges of our world. With the increasing risk of terrorism, smuggling, and security breaches, the need for UVSS technology has never been more pressing. UVSS provides a comprehensive and non-intrusive means of inspecting the undersides of vehicles, enabling the detection of concealed threats like explosives, contraband, and unauthorized individuals. This advanced technology finds applications at international borders, airports, military bases, and various critical infrastructure sites, significantly enhancing security measures.
Clear and Sharp Imaging
• High image resolution up to 20MP
• Low distortion and high grey level of image
High Efficiency
• Supports max 80km/h vehicle speed
• Less than 1s to synthesize a whole image

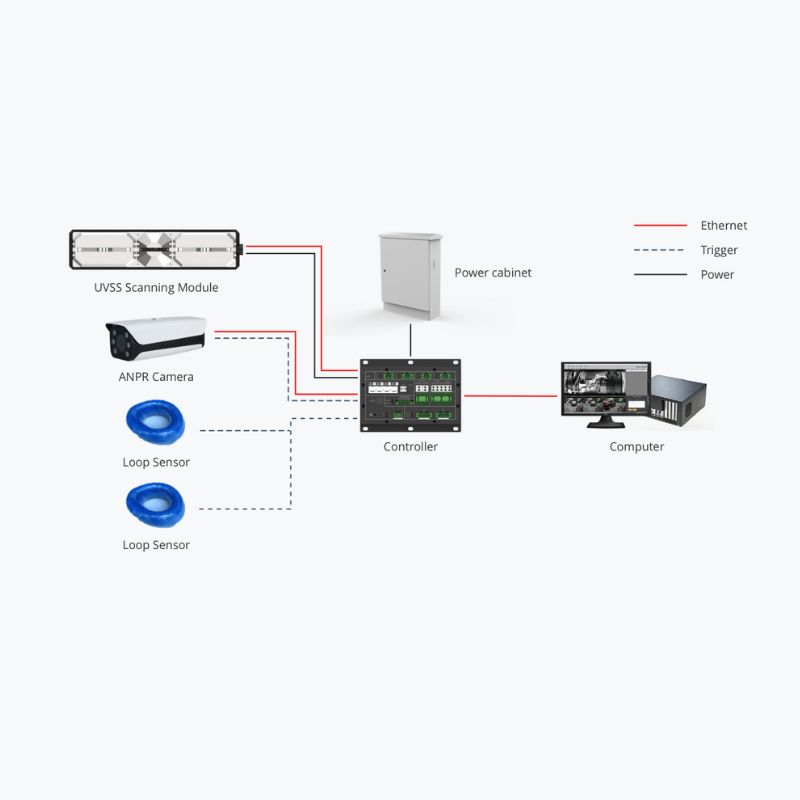

Full Integration
• Supports plate recognition for various countries with ANPR camera

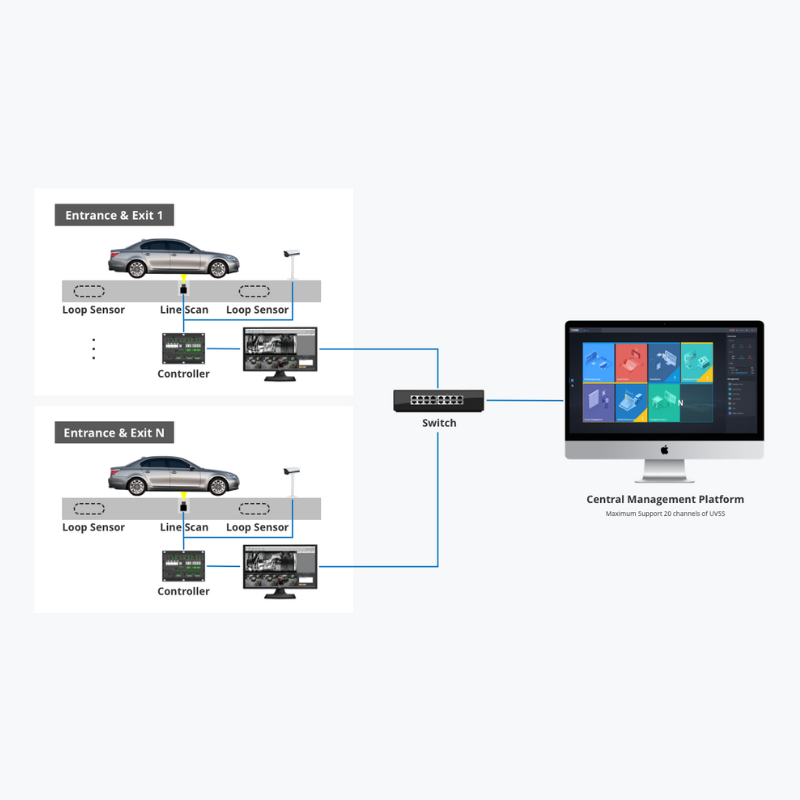

• Supports barrier integration and centralized management system
High Reliability
• Wide working temperature -40℃ ~ +85℃
• IP68 dust proof and water proof

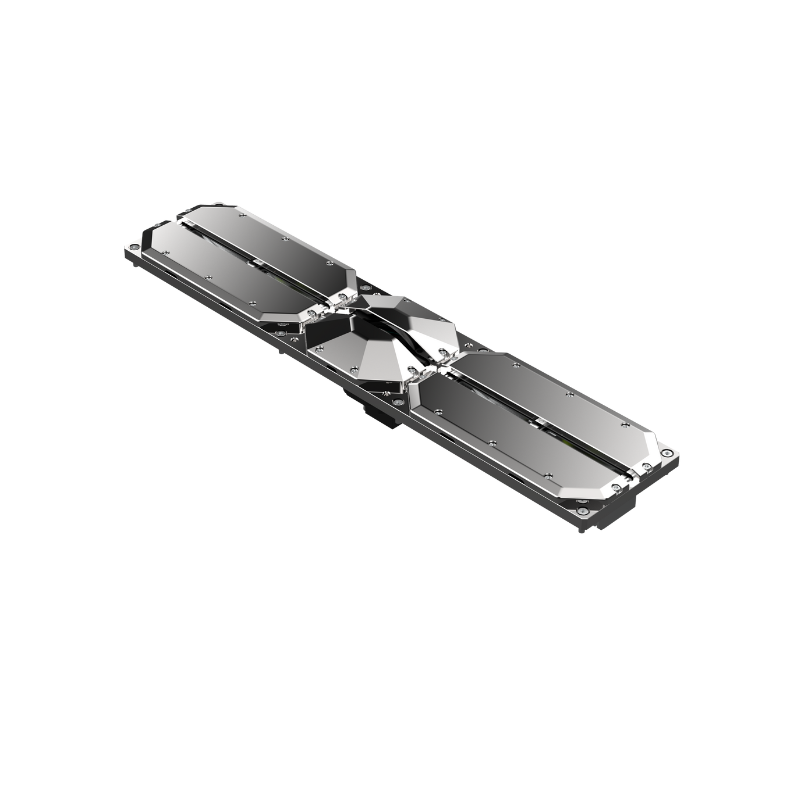

UVSS| DH-MV-VDM5021E-00
|
Items |
Specification |
|
Resolution |
Max 20MP |
|
Image Type |
Color image |
|
Field of View |
170° |
|
Imaging Time After Exit Trigger |
<1s |
|
Max Vehicle Speed |
80km/h,49.7mph (recommendation<50Km/h,31mph) |
|
Compatibility |
Chassis height:≥80mm(0.26ft); Chassis width:≤4500mm(14.8ft) |
|
Load-Bearing |
10t(22000lb) |
|
Case Material |
Stainless steel |
|
Power Supply |
100-240V AC |
|
Illumination |
250W dynamic LED array |
|
Weight |
15kg(33lb) |
|
Dimensions (mm) |
490x398x88 (19.3”x15.7”x3.5”) |
|
Operating Temperature |
-35°C ~ + 70°C (-31°F ~ 158°F) |
|
Operating Humidity |
<90%RH |
|
Protection |
IP68 |
APRN Camera
|
Items |
Specification |
|
Image Sensor |
1/2.8” 2Megapixel Starvis R CMOS |
|
Effective Pixels |
1920(H) x 1080(V) |
|
Scanning System |
Progressive |
|
Minimum Illumination |
0. 002Lux/F1.6 (Color),0Lux/F1.53(IR on) |
|
Focal Length |
3.2mm~10.5mm |
|
Max Aperture |
F1.6 |
|
Angle of View |
H: 108˚~ 30˚ V:56 ˚ ~17 ˚ |
|
Focus Control |
Auto |
|
Focus Distance Range |
3-6m |
|
Compression |
H.265/H.264M/H.264H/H.264B |
|
Frame Rate |
1080P(1 ~ 25/30fps) |
|
Ethernet |
RJ-45 (100/1000Base-T) |
